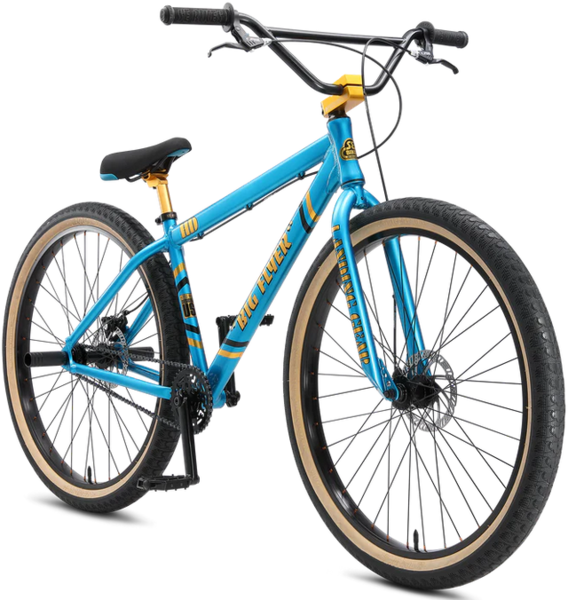

SE Bikes Big Flyer HD 29"
Details
We created an awesome new version of the Big Flyer this year. The 29” Big Flyer HD comes equipped with front and rear disc brakes and a sealed bearing rear disc hub. Add in the internal headset, mid bottom bracket, and 29” x 2.4” Bozack tires and you’ll see why this bike is the new king of the streets.
Key Features
- Lightweight 6061 aluminum Floval tubing frame with internal headset, mid bottom bracket, SE Wave dropouts with disc brake tabs
- Cr-Mo Landing Gear forks with disc brake tabs
- Tektro MD-280 mechanical disc brakes
- Double-wall rims with 135mm sealed bearing rear disc hub
- SE Bozack 29” x 2.4” tires
- Raise It Up! seat with super grippy top cover
- FSA internal headset
- 3-piece tubular cranks with custom SE Racing sprocket
- SE nylon fiber pedals
- SE Wheelie Pegs and alloy valve caps included
- 34.7 pounds
| Size | 23.6-inch |
|---|---|
| TOP TUBE, ACTUAL (IN) | 23.6 |
| SEAT TUBE, CENTER TO TOP (IN) | 16.9 |
| SEAT TUBE ANGLE | 71° |
| HEAD TUBE ANGLE | 71° |
| CHAINSTAY LENGTH (IN) | 18.4 |
| WHEELBASE (IN) | 43.4 |
| BOTTOM BRACKET HEIGHT (IN) | 12.24 |
| STANDOVER (IN) | 30.9 |
| SUGGESTED RIDER SIZE | 5'5"+ (165cm+) |
| STEM (mm) | 48 |
| HANDLEBAR WIDTH (IN) | 30 |
| CRANK (mm) | 175 |
| WHEEL SIZE (IN) | 29 |
| SEAT POST DIAMETER (mm) | 27.2 |
Specs
| Frame | 6061 Aluminum Floval Tubing, Internal Head Tube, 68mm Wide Mid Bottom Bracket, Wide Rear Stays, Disc Brake Tabs, 135mm Spaced SE Wave Dropouts |
|---|---|
| Fork | Landing Gear, Cr-Mo, Disc Brake Tabs |
| Wheels | SE Racing Alloy 36H Disc Hubs, 100mm Front Hub, 135mm Sealed Rear Hub, w/ Double-wall Rims, 16T Freewheel, Stainless Spokes |
| Tires | SE Bozack, Street Proven Multi Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 29" x 2.4" Front & Rear |
| Crankset | SE 3-pc Cr-Mo, 175mm, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 36T SE Sprocket |
| Chain | KMC S1 |
| Brakes | Tektro Aries, MD-280, Mechanical Disc, 160mm Rotors Front & Rear |
| Brake Levers | Tektro MT2.1, 2-Finger Alloy Front & Rear |
| Handlebars | Big Honkin' Cruiser Bar, 30" x 6", 10° Backsweep, 1° Upsweep |
| Tape/Grips | SE Bike Life Grips w/ SE Rubber End Plugs |
| Stem | SE Bike Life Alloy Top-Load, 48mm Reach |
| Headset | FSA Internal, No.10, 1-1/8" |
| Seatpost | Race Rocker Micro-Adjust Alloy, 27.2mm |
| Saddle | SE Flyer Seat w/ Grippy Fabric Top Cover |
| Pedals | SE Nylon Fiber Platform |
| Accessories & Extras | SE Bike Life Wheelie Pegs, Alloy Valve Caps |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| HIGH DEF SILVER / BLUE / 23.6-inch | 785749216829 | 29221192829 | 225E9C6C-4A1E-4BE1-8DEF-947F0F58D3C4 |
| ELECTRIC BLUE / 23.6-inch | |||
| HIGH DEF SILVER / RED / 23.6-inch |
